Lane Keeping Assist settings

Setting features

Lane Safety

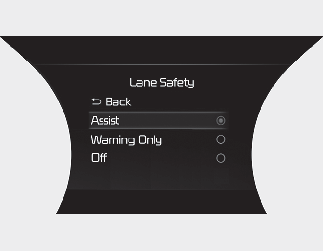

With the ENGINE START/STOP button in the ON position, select or deselect ‘Driver Assistance → Lane Safety’ from the “User Settings (LCD display) or Settings → Vehicle (Infotainment System screen)” to set whether or not to use each function.

  • If ‘Assist’ is selected, Lane Keeping Assist will automatically assist the driver’s steering when lane departure is detected to help prevent the vehicle from moving out of its lane.

  • If ‘Warning Only’ is selected, Lane Keeping Assist will warn the driver with an audible warning when lane departure is detected. The driver must steer the vehicle.

  • If ‘Off’ is selected, Lane Keeping Assist will turn off. The indicator light will turn off on the cluster.

WARNING
  • If ‘Warning Only’ is selected, steering is not assisted.

  • Lane Keeping Assist does not control the steering wheel when the vehicle is driven in the middle of the lane.

  • The driver should always be aware of the surroundings and steer the vehicle if ‘Off’ is selected.

Turning Lane Keeping Assist ON/OFF

  • For Europe, Australia, Russia

Whenever the engine is turned on, Lane Keeping Assist will always turn on. The white () indicator light will appear on the cluster. When Lane Keeping Assist is on, press and hold the Lane Driving Assist button to turn off the function.

  • Except Europe, Australia, Russia

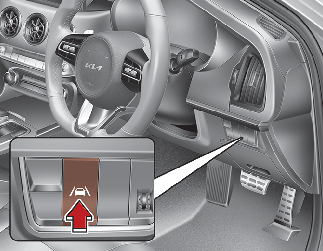

With the ENGINE START/STOP button in the ON position, press and hold the Lane Safety button located on the instrument panel to turn on Lane Keeping Assist. The white () indicator light will appear on the cluster. Press and hold the button again to turn off Lane Keeping Assist. If the engine is restarted, Lane Keeping Assist will maintain the last setting

NOTICE

When Lane Keeping Assist is turned off with the Lane Safety button, Lane Safety settings will turn ‘Off’.

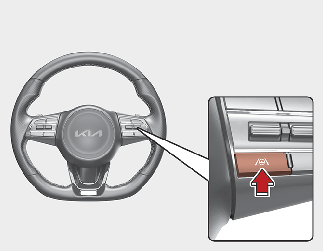

To activate/deactivate Lane Keeping Assist, with the ENGINE START/STOP button in the ON position, press and hold the Lane Driving Assist button () located on the steering wheel to turn off Lane Keeping Assist. Press and hold the button again to turn on Lane Keeping Assist.

The indicator () in the cluster display will initially appear white. If you pressing and holding the Lane Driving Assist button located on the steering wheel, Lane Keeping Assist will be turned off and the indicator on the cluster display will go off.

NOTICE

When Lane Keeping Assist is turned off with the Lane Driving Assist button, Lane Safety settings will turn ‘Off’.

Warning Volume

With the ENGINE START/STOP button in the ON position, select ‘Driver Assistance → Warning Volume’ from the “User Settings (LCD display) or Settings → Vehicle (Infotainment System screen)” to change the Warning Volume to ‘High’, ‘Medium’, ‘Low’ for Lane Keeping Assist.

If you change the Warning Volume, the Warning Volume of other Driver Assistance systems may change.

NOTICE

If your vehicle is equipped with additional Infotainment System, please scan the QR code in a separately supplied Car Infotainment System Quick Reference Guide.
