Headlight levelling device
Manual type (if equipped)

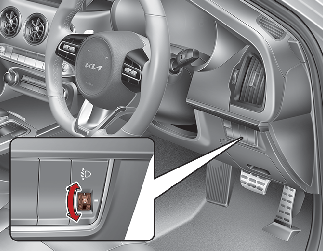

To adjust the headlight beam level according to the number of passengers and loading weight in the luggage area, turn the beam levelling switch.
The higher the number of the switch position, the lower the headlight beam level. Always keep the headlight beam at the proper levelling position, or headlights may dazzle other road users.
Listed below are the examples of proper switch settings. For loading conditions other than those listed below, adjust the switch position so that the beam level may be the nearest as the condition obtained according to the list.
|
Loading condition |
Switchposition |
|---|---|
|
Driver only |
0 |
|
Driver + Front passenger |
0 |
|
Full passengers (including driver) |
1 |
|
Full passengers (including driver) + Maximum permissible loading |
2 |
|
Driver + Maximum permissible loading |
3 |
Automatic type (if equipped)
It automatically adjusts the headlight beam level according to the number of passengers and loading weight in the luggage area.
And it offers proper headlight beam under various conditions.
If it is not work properly even though your car is inclined backward according to passenger's posture, or the headlight beam is irradiated to the high or low position, have the system inspected by a professional workshop. Kia recommends to visit an authorised Kia dealer/service partner.
Do not attempt to inspect or replace the wiring yourself.
