Engine room access
Front passenger’s seat
To access the engine room under the front passenger’s seat,
-
Fold the passenger’s seatback and center seatback.
-

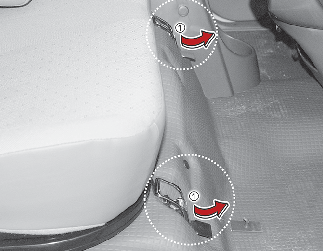

Unsnap the clasps (1) at the front of the seat cushion.
-

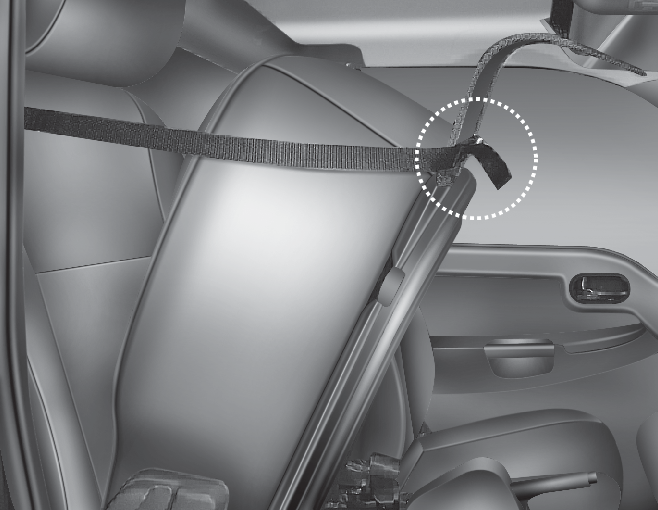

Raise the seat and lock the tiedown strap on the anchor below the passenger’s seat to fasten the seat. Use each bezel on the strap to adjust the angle when raising the seat.
Do not leave gloves, rags or any other combustible material in the engine compartment. Doing so may cause a heat-induced fire.
(Diesel) 2.5 VGT
Never work on injection system with engine running or within 30 seconds after shutting off engine. High-pressure pump, rail, injectors and high-pressure pipes are subject to high pressure even after the engine stopped.The fuel jet produced by fuel leaks may cause serious injury, if it touches the body. People using pacemakers should not move than 30cm closer to the ECU or wiring harness within the engine room while engine is running, since the high currents in the electronic engine control system produce considerable magnetic fields.
