Engine compartment

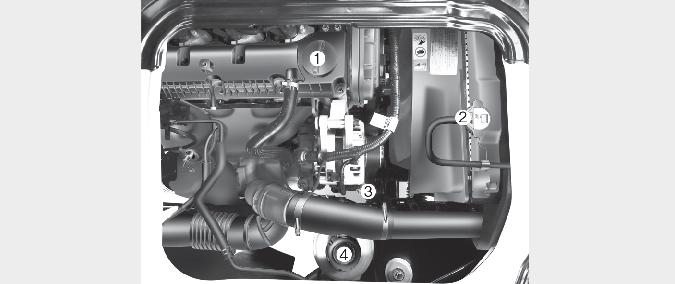

(Diesel) 2.5 VGT - Engine
(Diesel) 2.5 VGT - Hood

* The actual engine room in the vehicle may differ from the illustration.

* Engine Room is located under the Passenger’s seat. Seat Handling Procedure for Engine inspection, refer to More Details.

  1. Engine oil filler cap

  2. Radiator cap

  3. Engine oil dipstick

  4. Power steering fluid reservoir

  5. Engine coolant reservoir

  6. Climate control air filter

  7. Windshield washer fluid reservoir

(Diesel) 2.7 VGT/ (Diesel) 3.0 VGT - Engine
(Diesel) 2.7 VGT/ (Diesel) 3.0 VGT - Hood

* The actual engine room in the vehicle may differ from the illustration.

* Engine Room is located under the Passenger’s seat. Seat Handling Procedure for Engine inspection, refer to More Details.

  1. Engine oil filler cap

  2. Radiator cap

  3. Engine oil dipstick

  4. Power steering fluid reservoir

  5. Engine coolant reservoir

  6. Climate control air filter

  7. Windshield washer fluid reservoir
