Front turn signal lamp (Bulb type) bulb replacement

  1. Open the hood.

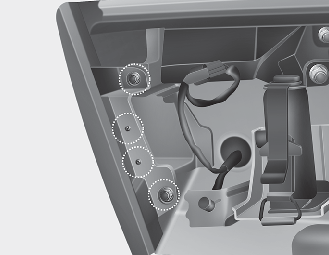

  2. Remove a headlamp assembly mounting bolt with a spanner.

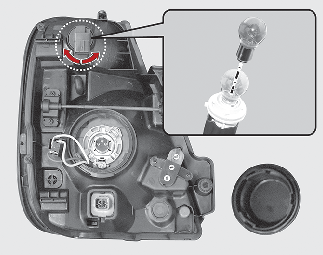

  3. Remove the bulb-socket from the headlamp assembly by turning the bulb-socket counterclockwise until the tabs on the bulb-socket align with the slots on the headlamp assembly.

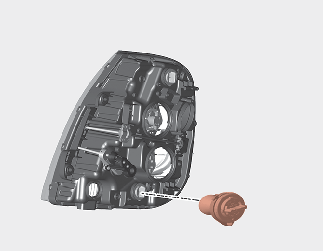

    Head lamp - Type A
    Head lamp - Type B
  4. Remove the bulb from the bulbsocket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the bulb-socket. Pull the bulb out of the bulb-socket.

  5. Insert a new bulb by inserting it into the bulb-socket and rotating it until it locks into place.

  6. Install the socket in the headlamp assembly by aligning the tabs on the bulb-socket with the slots in the assembly. Push the bulb-socket into the headlamp assembly and turn the socket clockwise.
