Headlamp (Low/High) (Bulb type) bulb replacement

  1. Open the hood.

  2. Remove a headlamp assembly mounting bolt with a spanner.

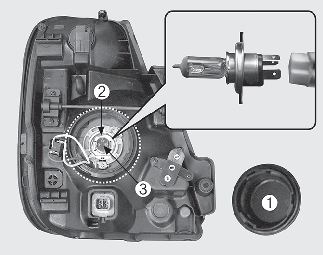

    Head lamp - Type A

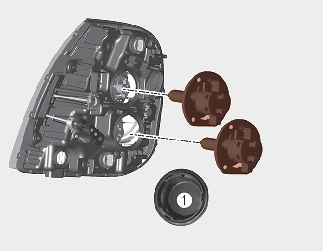

    Head lamp - Type B

  3. Disconnect the power cord from the bulb base in the back of the headlamp.

  4. Remove the dust cover (1).

  5. Push the bulb spring to remove the headlamp bulb.

  6. Remove the protective cap from the replacement bulb and install the new bulb by matching the plastic base with the headlight hole. Reattach the bulb spring and install the dust cover. Reconnect the power cord.

  7. Use the protective cap and carton to dispose of the old bulb.

  8. Check for proper headlamp aim.

* If it is difficult to replace light bulbs, have your vehicle checked by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.

Headlamp bulb

WARNING

Halogen bulbs

  • Halogen bulbs contain pressurized gas that will produce flying pieces of glass if broken.

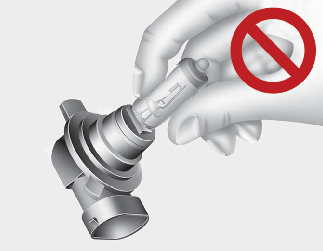

  • Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids. Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit.

    A bulb should be operated only when installed in a headlight.

  • If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.

  • Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.
