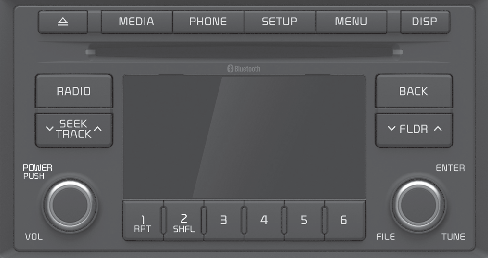

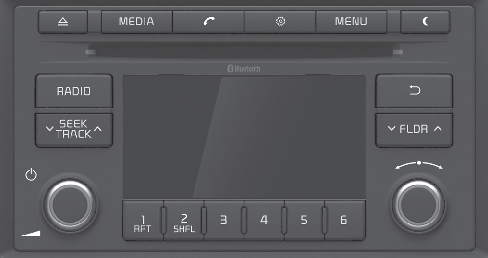

* The actual features in the vehicle may differ from the illustration.

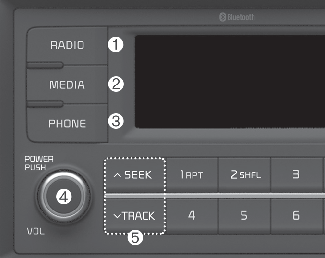

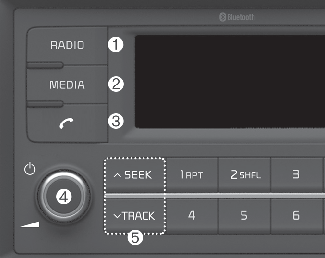

1. RADIO

• Plays Radio(FM/AM) mode.

• Each time the button is pressed, the media mode popup will be displayed or closed.

• The radio mode popup will not be displayed when [SETUP]button ▶ [Display] ▶ [Mode popup] is turned [Off].

1. MEDIA

• Plays USB(iPod®), BT Audio, AUX mode.

• Each time the button is pressed, the media mode popup will be displayed or closed.

• The radio mode popup will not be displayed when [SETUP]button ▶ [Display] ▶ [Mode popup] is turned [Off].

1. PHONE

• Moves to Phone screen.

• If Bluetooth® is not connected, displays Bluetooth® Pair/Connection screen.

1. POWER/VOL knob

• Power knob: Turns power On/Off by pressing the knob.

• Volume knob: Sets volume by turning the knob left/right.

1. SEEK/TRACK

When pressed quickly

• Radio mode: Searches broadcast frequencies.

• Media mode: Changes the track, file or title. (except AUX)

When pressed and held

• Radio mode: Frequency is controlled by 1 step quickly. When the button is released after pressing and holding, searches broadcast frequencies.

• Media mode: Rewinds or fast-forwards the song. (except BT Audio, AUX)

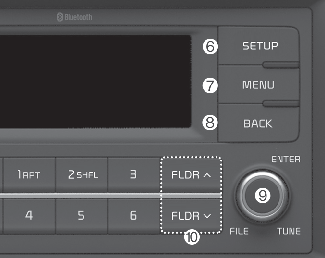

1. SETUP

• Moves to Setup screen.

1. MENU

• Displays menus for the current mode.

1. BACK

• Moves to previous screen.

1. TUNE knob

• Radio mode: Changes frequency by turning the knob left/right.

• Media mode: Searches songs(files) by turning the knob left/right.

1. FLDR

• USB mode: Searches folders.

1. [1] ~ [6] (Preset)

When pressed quickly

• Radio mode: Receives saved frequencies(channels).

• Media mode(USB)

  • [1 RPT] button: Repeat/Repeat Folder

  • [2 SHFL] button:Shuffle Folder/Shuffle

• Media mode(iPod®)

  • [1 RPT] button: Repeat

  • [2 SHFL] button: Shuffle

• In case of Menu popup, the number menu is selected.

When pressed and held

• Radio mode: Saves frequencies (channels).

(With Bluetooth® Wireless Technology)
