Filter replacement

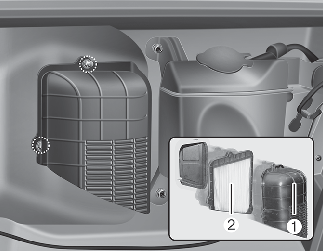

Paper filter type

  1. Open the hood.

  2. Disassemble the Air Inlet Duct nut from the dash panel.

  3. Disassemble the Air Inlet Duct Assembly (1).

  4. Disassemble the Dust paper filter (2).

  5. Replace the Air Filter for Climate Control System.

  6. Assemble it in the reverse order of disassemble and install it.

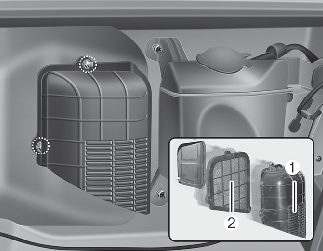

Washable type

  1. Open the hood.

  2. Disassemble the Air Inlet Duct nut from the dash panel.

  3. Disassemble the Air Inlet Duct Assembly (1).

  4. Disassemble the filter (2) and wash it by using water or compressed air. In case of water wash, install it after completely dry.

  5. Assemble it in the reverse order of disassemble and install it.
