Fuse/relay panel description

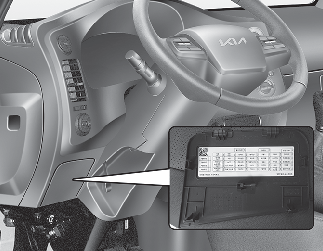

Driver’s side fuse panel
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
The actual fuse panel label may differ from equipped items.

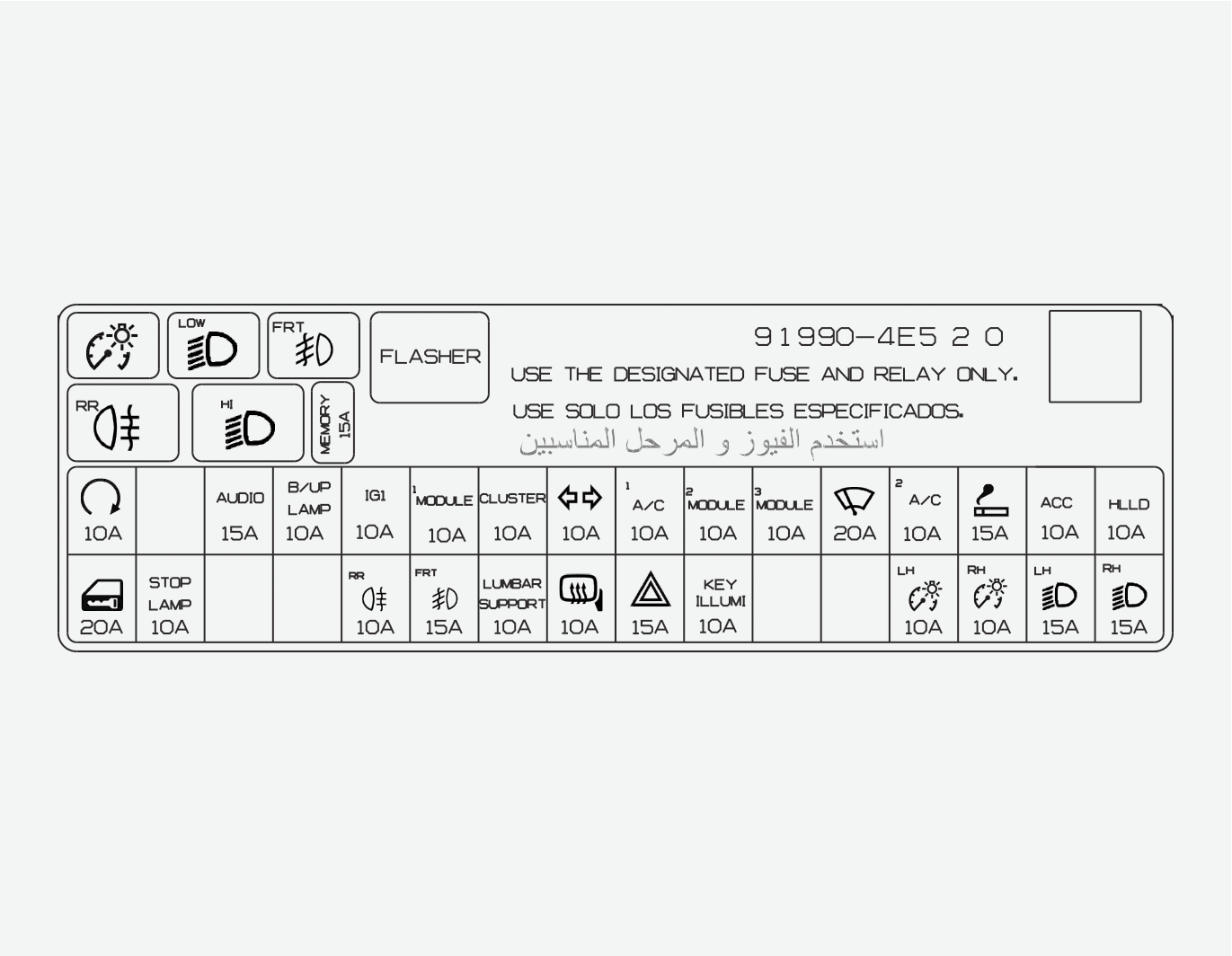

Driver’s side fuse panel ((Diesel) 2.7 VGT/ (Diesel) 3.0 VGT)
|
Fuse Name |
Symbol |
Fuse rating |
Protected Component |
|---|---|---|---|
|
START |
|
10A |
Engine Room Junction Block (Start Relay) |
|
AUDIO |
|
15A |
Audio |
|
B/UP LAMP |
|
10A |
Back-Up Lamp Switch, Reverse Parking Distance Warning (PDW) Buzzer |
|
IG 1 |
|
10A |
ECM (Electronic Control Module), Alternator, Vehicle Speed Sensor, Fuel Filter Warning Sensor, Oil Filter |
|
MODULE 1 |
|
10A |
Auto Light Sensor |
|
CLUSTER |
|
10A |
ETACM, Instrument Cluster |
|
T/SIGNAL LAMP |
|
10A |
Hazard Switch, Multifunction Switch (Light) |
|
A/CON 1 |
|
10A |
Heater Control Module, Engine Room Junction Block (Blower Relay) |
|
MODULE 2 |
|
10A |
Front Fog Lamp Relay, Head Lamp High Relay, DRL (Daytime Running Light) Relay, DEDI DRL (Daytime Running Light) Unit |
|
MODULE 3 |
|
10A |
Rear Fog Lamp Relay, Head Lamp Low Relay |
|
WIPER |
|
20A |
Wiper Motor, Multifunction Switch (Wiper) |
|
A/CON 2 |
|
10A |
Heater Control Module, Heater Actuator Assembly, Blower Switch |
|
C/LIGHTER |
|
15A |
Cigarette Lighter |
|
ACC |
|
10A |
Audio, Outside Mirror Switch |
|
HLLD |
|
10A |
Head Lamp Leveling Device Switch, Head Lamp Leveling Device Actuator Left Handle side/Right Handle side |
|
DOOR LOCK |
|
20A |
ICM Relay Box (Door Lock Relay, Door Unlock Relay) |
|
STOP LAMP |
|
10A |
Stop Signal Relay, Data Link Connector |
|
REAR FOG LAMP |
|
10A |
Rear Fog Lamp Relay |
|
FRONT FOG LAMP |
|
15A |
Front Fog Lamp Relay |
|
LUMBAR SUPPORT |
LUMBAR SUPPORT |
10A |
Driver Lumbar Support Switch |
|
HEATED MIRROR |
|
10A |
ICM Relay Box (Outside Mirror Heated Relay) |
|
HAZARD |
|
15A |
ICM Relay Box (Hazard Relay), Hazard Switch, Flasher Control Module |
|
KEY ILLUMI |
|
10A |
Door Warning Switch |
|
TAIL LAMP LH |
|
10A |
Instrument Cluster, Audio, Clock Spring, AUX & USB Jack, Head Lamp Leveling Device Switch, Hazard Switch, Outside Mirror Defogger Switch, Heater Control Module, Power Window Main Switch, Passenger Power Window Switch, Rear Combination Lamp Left Handle side, Position Lamp Left Handle side, Head Lamp Left Handle side |
|
TAIL LAMP RH |
|
10A |
Rear Combination Lamp Right Handle side, Position Lamp Right Handle side, Head Lamp Right Handle side, License Lamp, License Lamp (Dual) |
|
HEAD LAMP LH |
|
15A |
Head Lamp Left Handle side |
|
HEAD LAMP RH |
|
15A |
Head Lamp Right Handle side, Instrument Cluster |
|
MEMORY |
|
15A |
Fuse (AUDIO), ETACM, Instrument Cluster, Heater Control Module, Front Room Lamp, Center Room Lamp |
Relay ((Diesel) 2.7 VGT/ (Diesel) 3.0 VGT)
|
Relay Name |
Symbol |
Type |
|---|---|---|
|
Tail Lamp Relay |
|
MICRO |
|
Head Lamp Low Relay |
|
MICRO |
|
Front Fog Lamp Relay |
|
MICRO |
|
Rear Fog Lamp Relay |
|
MINI |
|
Head Lamp High Relay |
|
MINI |

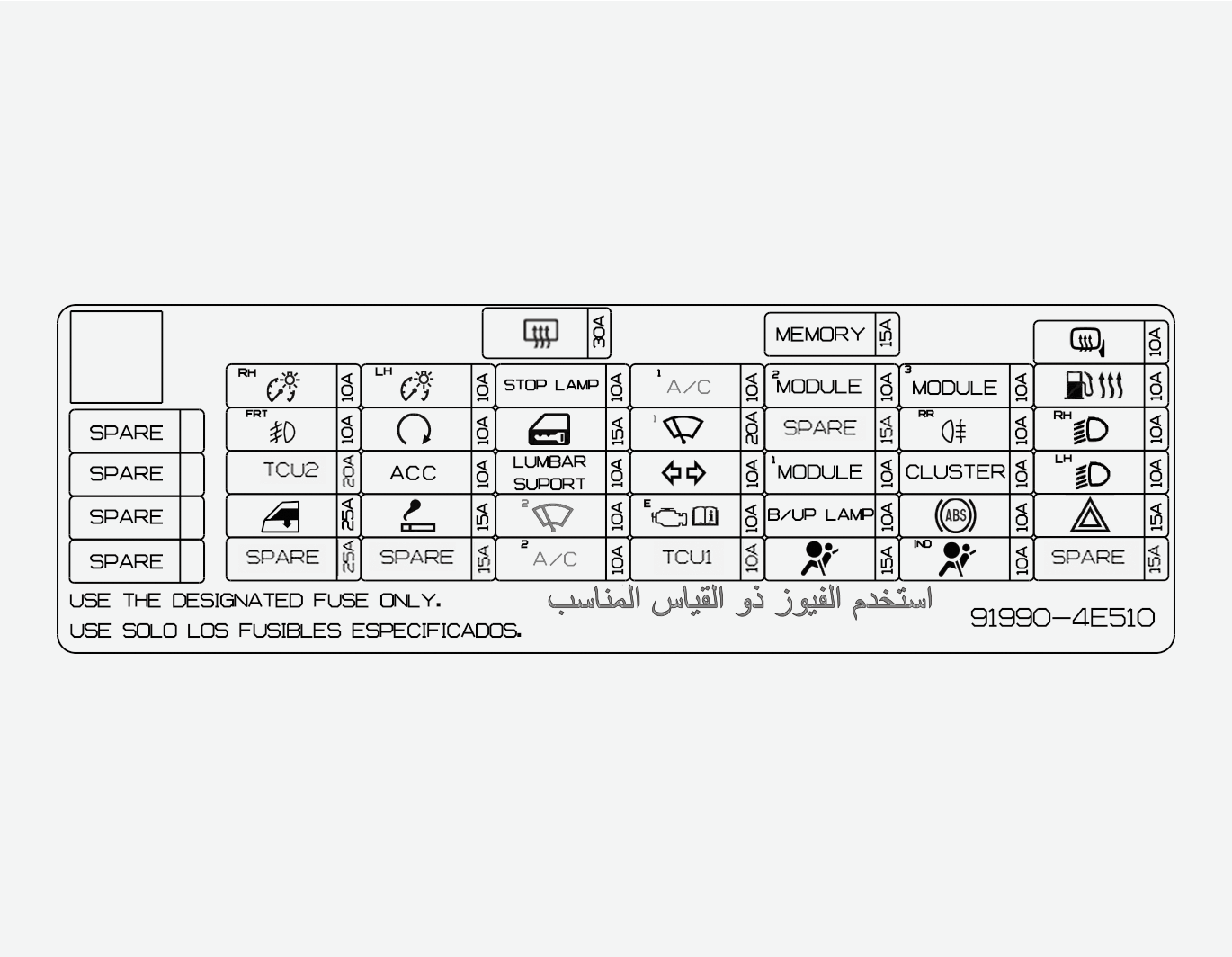

Driver’s side fuse panel ((Diesel) 2.5 VGT)
|
Fuse Name |
Symbol |
Fuse rating |
Protected Component |
|---|---|---|---|
|
TAIL LAMP RH |
|
10A |
Instrument Cluster, Audio, Clock Spring, Hazard Switch, LPI Switch, AUX & USB Jack, Heater Control Module, Head Lamp Leveling Device Switch, Outside Mirror Defogger Switch, PTO Switch, TOP Control Connector, Power Window Main Switch, Passenger Power Window Switch, Rear Combination Lamp Right Handle side, Position Lamp Right Handle side, Head Lamp Right Handle side, License Lamp, License Lamp (Dual) |
|
FRONT FOG LAMP |
|
10A |
Front Fog Lamp Relay |
|
FRONT P/WINDOW |
|
25A |
Power Window Main Switch, Passenger Power Window Switch |
|
HEATED MIRROR 1 |
|
30A |
Heated Mirror Relay |
|
TAIL LAMP LH |
|
10A |
Rear Combination Lamp Left Handle Side, Position Lamp Left Handle Side, Head Lamp Left Handle Side, ESC (Electronic Stability Control) Off Switch |
|
START |
|
10A |
Engine Room Junction Block (Start Relay), ECM (Electronic Control Module) |
|
ACC |
|
10A |
Audio, Outside Mirror Switch |
|
C/LIGHTER |
|
15A |
Cigarette Lighter |
|
STOP LAMP |
|
10A |
Stop Signal Relay, Stop Signal Electronic Module, Data Link Connector |
|
DOOR LOCK |
|
15A |
Door Lock Relay, Door Unlock Relay |
|
LUMBAR SUPPORT |
LUMBAR SUPPORT |
10A |
Driver Lumbar Support Switch |
|
A/CON 2 |
|
10A |
Heater Control Module, Heater Actuator Assembly, Blower Switch, ECM (Electronic Control Module) |
|
A/CON 1 |
|
10A |
Heater Control Module, Engine Room Junction Block (Blower Relay) |
|
WIPER |
|
20A |
Wiper Motor, Multifunction Switch (Wiper) |
|
T/SIGNAL LAMP |
|
10A |
Hazard Switch, Multifunction Switch (Light) |
|
ECU |
|
10A |
ECM (Engine Control Module), Air Flow Sensor, Stop Lamp Switch, Glow Control Module |
|
MEMORY |
|
15A |
Audio, Instrument Cluster, ETACM, Heater Control Module, Door Warning Switch, Tire Pressure Monitoring Module, Front Room Lamp, Center Room Lamp |
|
MODULE 2 |
|
10A |
DRL (Daytime Running Light) Unit, DRL (Daytime Running Light) Relay |
|
MODULE 1 |
|
10A |
Vehicle Speed Sensor, Fuel Filter Warning Sensor, Auto Light Sensor, Tire Pressure Monitoring Module, Passenger Seat Belt Reminder Unit, Head Lamp Leveling Device Switch, Dosing Control Module, Head Lamp Leveling Device Actuator Left Handle side/Right Handle side |
|
B/UP LAMP |
|
10A |
Back-Up Lamp Switch, Reverse Parking Distance Warning (PDW) Buzzer |
|
AIR BAG |
|
15A |
SRS (Supplemental Restraint System) Control Module |
|
MODULE 3 |
|
10A |
Instrument Cluster |
|
REAR FOG LAMP |
|
10A |
Rear Fog Lamp Relay |
|
CLUSTER |
|
10A |
ETACM, Instrument Cluster, Alternator Resister |
|
ABS |
|
10A |
ABS Control Module, ESC (Electronic Stability Control) Control Module, ESC (Electronic Stability Control) Off Switch, Diode, Steering Angle Sensor |
|
A/BAG IND |
|
10A |
Instrument Cluster |
|
HEATED MIRROR 2 |
|
10A |
Outside Mirror Defogger Switch |
|
FUEL HEATER |
|
10A |
Engine Room Junction Block (Fuel Heater Relay) |
|
HEAD LAMP RH |
|
15A |
Head Lamp Right Handle side, DRL (Daytime Running Light) Relay |
|
HEAD LAMP LH |
|
15A |
Head Lamp Left Handle side, DRL (Daytime Running Light) Relay |
|
HAZARD |
|
15A |
Hazard Relay, Hazard Switch, Flasher Control Module |
|
TCU1 |
|
10A |
TCU (Transmission Control Unit), P/N (Part Number) Relay 'S1' |
|
TCU2 |
|
15A |
TCU (Transmission Control Unit) |

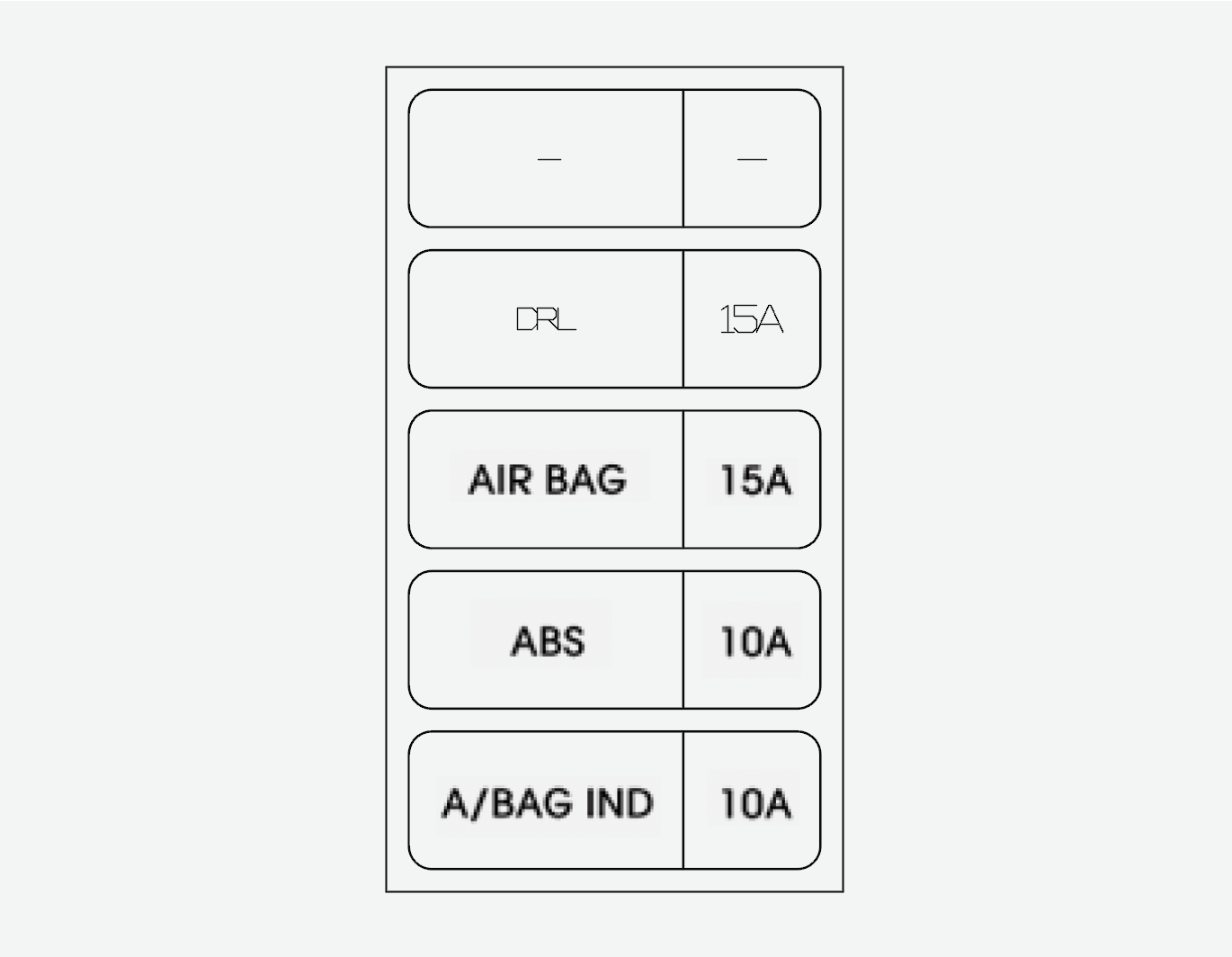

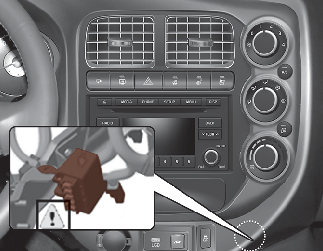

Sub junction panel
Sub junction panel
|
Fuse Name |
Symbol |
Fuse rating |
Protected Component |
|---|---|---|---|
|
DRL |
DRL |
15A |
Daytime Running Light |
|
H/LAMP HI |
H/LAMP HI |
15A |
Headlamp High |

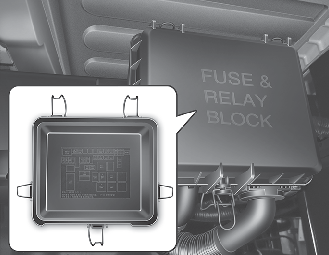

Main fuse panel
The actual fuse panel label may differ from equipped items.

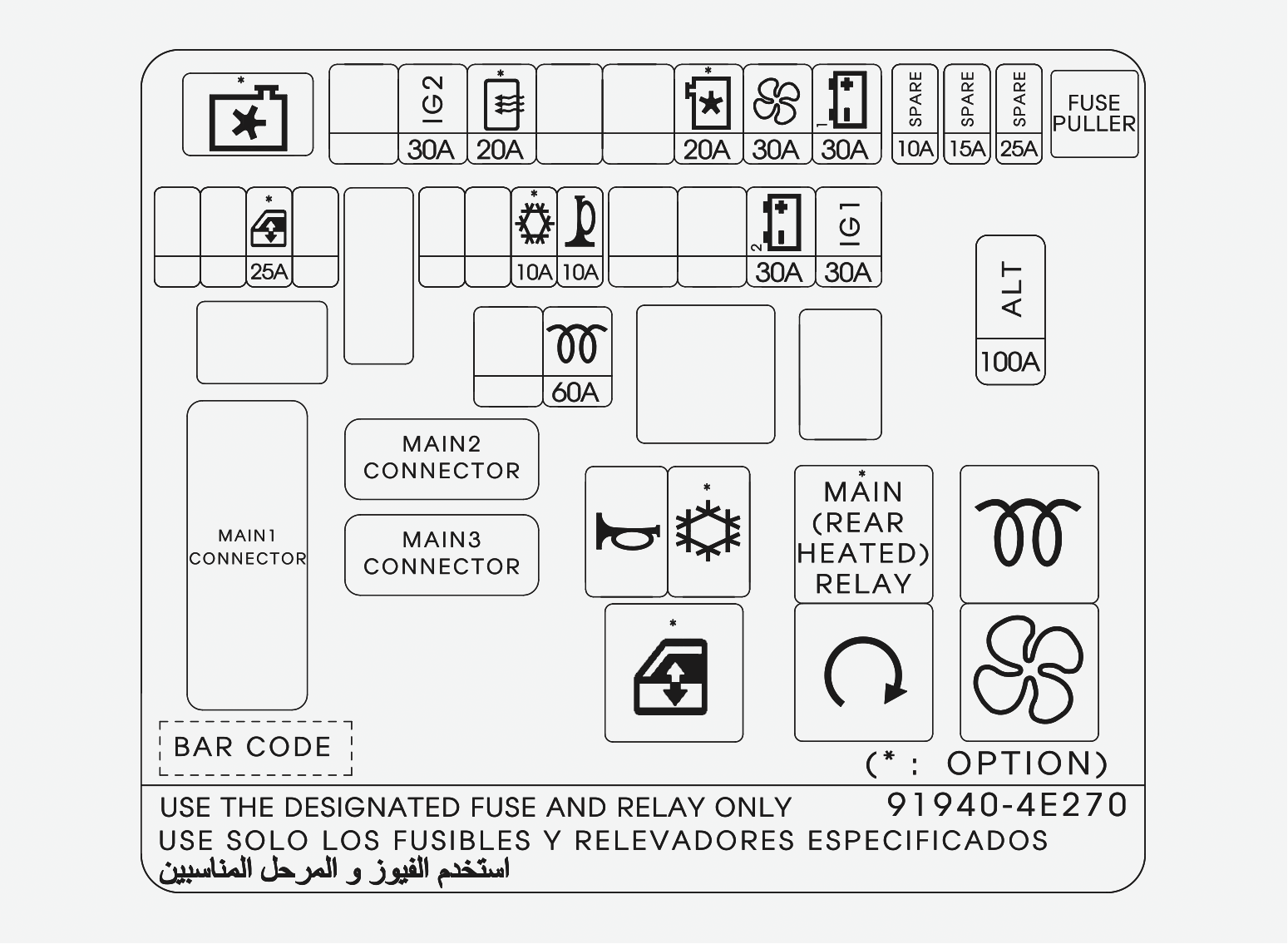

Main fuse panel ((Diesel) 2.7 VGT/ (Diesel) 3.0 VGT)
|
Description |
Symbol |
Fuse Name |
Fuse rating |
Protected Component |
|---|---|---|---|---|
|
FUSE |
|
ALT |
100A |
Alternator, Fuse - IG2/Rear Heated/Cooling Fan/Blower/Battery1 |
|
|
IG 2 |
30A |
Ignition Switch |
|
|
|
RR HEATED |
20A |
Main (Rear Heated) Relay |
|
|
|
COOLING FAN |
20A |
Cooling Fan Relay |
|
|
|
BLOWER |
30A |
Blower Relay |
|
|
|
BATT 1 |
30A |
Power Window Relay, Instrument Panel Junction Block (Fuse : Heated Mirror, Hazard, Key Illumi) |
|
|
|
P/WINDOW |
25A |
Power Window Main Switch, Passenger Power Window Switch |
|
|
|
A/C |
10A |
A/C Relay |
|
|
|
HORN |
10A |
Horn Relay |
|
|
|
BATT 2 |
30A |
Instrument Panel Junction Block (Tail Lamp Relay, Fuse – Rear Fog Lamp/Front Fog Lamp/Lumbar Support/Door Lock/Stop Lamp, Power Connector Fuse -Memory) |
|
|
|
IG 1 |
30A |
Ignition Switch, Start Relay |
|
|
|
GLOW |
60A |
Glow Relay |
Relay ((Diesel) 2.7 VGT/ (Diesel) 3.0 VGT)
|
Relay Name |
Symbol |
Type |
|---|---|---|
|
Main (Rear Heated) Relay |
|
MINI |
|
Glow Relay |
|
MINI |
|
Start Relay |
|
MINI |
|
Blower Relay |
|
MINI |
|
Horn Relay |
|
MICRO |
|
A/C Relay |
|
MICRO |
|
Power Window Relay |
|
MICRO |
|
Cooling Fan Relay |
|
MICRO |

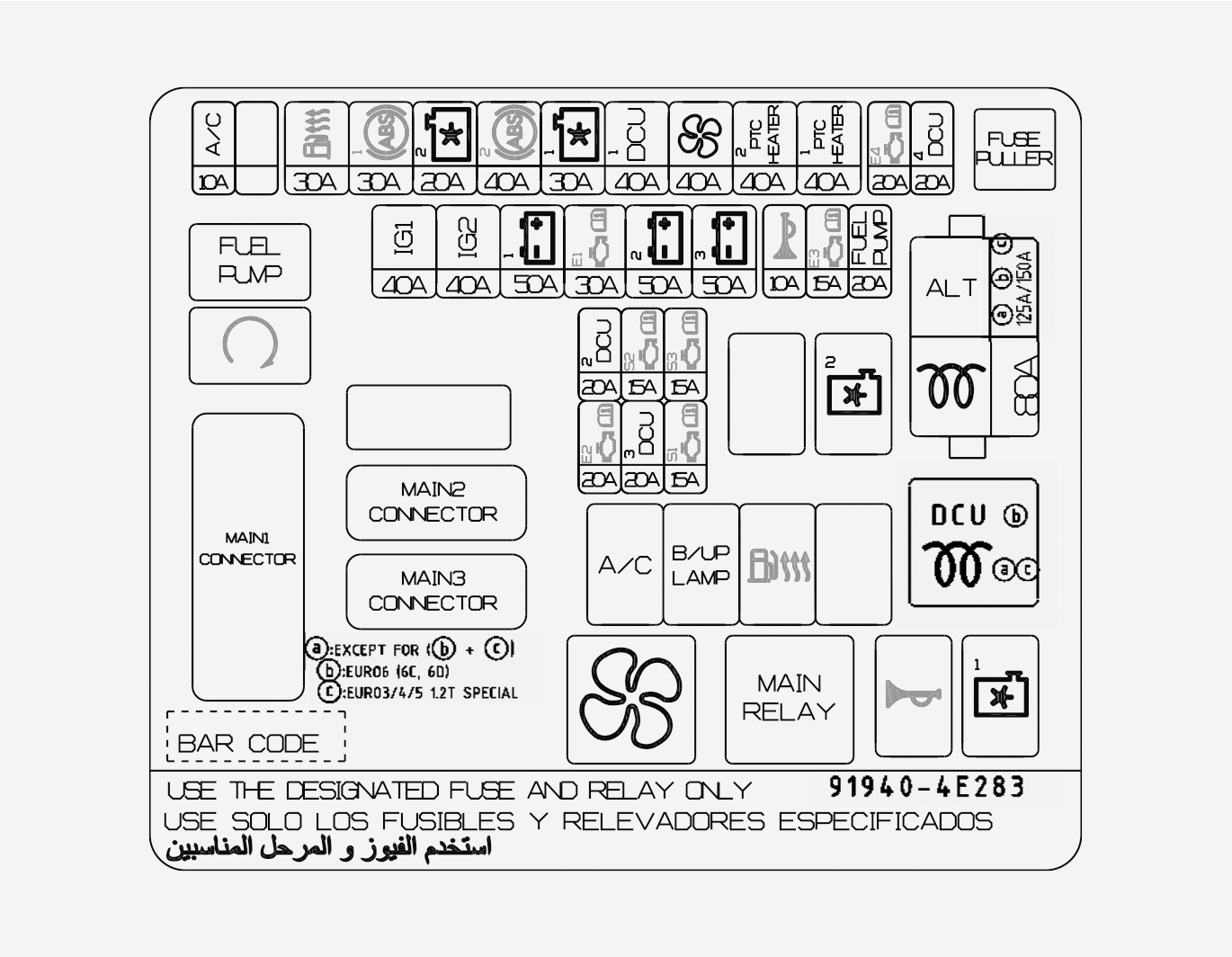

Main fuse panel ((Diesel) 2.5 VGT)
|
Description |
Symbol |
Fuse Name |
Fuse rating |
Protected Component |
|---|---|---|---|---|
|
FUSE |
|
ALT |
125A*1 150A*2 |
Alternator, Fuse (A/CON/FUEL HEATER/ABS 1/COOLING FAN 2/ABS 2/COOLING FAN 1/DCU 1/BLOWER) *1. Without EURO 6/6C : 125A *2. With EURO 6/6C : 150A |
|
|
GLOW |
80A |
[Without EURO 6/6C] Glow Relay [With EURO 6/6C] Glow Control Module |
|
 |
A/CON |
10A |
A/CON Relay |
|
|
|
FUEL HEATER |
30A |
Fuel Heater Relay |
|
|
|
ABS 1 |
30A |
ABS Control Module, ESC (Electronic Stability Control) Control Module |
|
|
|
COOLING FAN 2 |
20A |
Cooling Fan 2 Relay |
|
|
|
ABS 2 |
40A |
ABS Control Module, ESC (Electronic Stability Control) Control Module |
|
|
|
COOLING FAN 1 |
30A |
Cooling Fan 1 Relay |
|
|
|
DCU 1 |
40A |
[With EURO 6C] DCU Relay |
|
|
|
BLOWER |
40A |
Blower Relay |
|
|
|
ECU 4 |
20A |
[With EURO 6/6C] ECM (Engine Control Module) |
|
|
|
DCU 4 |
20A |
[With EURO 6C] Dosing Control Module |
|
|
FUSE |
|
IG 1 |
40A |
Ignition Switch |
|
|
IG 2 |
40A |
Ignition Switch, Start Relay |
|
|
|
BATT 1 |
50A |
Instrument Panel Junction Block (Fuse : HEATED MIRROR 1/STOP LAMP/DOORLOCK/LUMBAR SUPPORT, Power Connector Fuse : MEMORY) |
|
|
|
ECU 1 |
30A |
Main Relay |
|
|
|
BATT 2 |
50A |
Instrument Panel Junction Block (Fuse : FRONT FOG LAMP/ECU 2/AUDIO, Tail Lamp Relay, Power Window Relay) |
|
|
|
BATT 3 |
50A |
Instrument Panel Junction Block (Head Lamp Low Relay, Fuse : AIR BAG/MODULE 3), Sub Junction Block (Fuse : H/LAMP HI, DRL) |
|
|
|
HORN |
10A |
Horn Relay |
|
|
|
ECU 3 |
15A |
ECM (Engine Control Module) |
|
|
|
FUEL PUMP |
20A |
Fuel Pump Relay |
|
|
|
DCU 2 |
20A |
[With EURO 6C] Dosing Control Module |
|
|
|
SENSOR 2 |
15A |
Immobilizer Module, WGT Solenoid [Without EURO 6/6C] Stop Lamp Switch, Inlet Metering Valve [With EURO 6/6C] EGR Cooling Bypass Valve |
|
|
|
SENSOR 3 |
15A |
[With EURO 6/6C] PM Sensor, Lambda Sensor #1/#2 (EURO 6), Lambda Sensor (EURO 6), Front Nox Sensor, Rear Nox Sensor |
|
|
|
ECU 2 |
20A |
ECM (Engine Control Module) [With EURO 6/6C] Fuel Pump Relay, Inlet Metering Valve, Rail Pressure Regulator Valve |
|
|
|
DCU 3 |
20A |
[With EURO 6C] Dosing Control Module |
|
|
|
SENSOR 1 |
15A |
Cooling Fan 2 Relay, A/C Relay, Glow Relay (without EURO 6/6C), Cooling Fan 1 Relay |
Relay ((Diesel) 2.5 V)GT
|
Relay Name |
Symbol |
Type |
|---|---|---|
|
Fuel Pump Relay |
|
MICRO |
|
Start Relay |
|
MICRO |
|
Cooling Fan 2 Relay |
|
MICRO |
|
A/C Relay |
A/C |
MICRO |
|
Fuel Heater Relay |
|
MICRO |
|
Glow Relay (Without EURO 6/6C) |
|
MINI |
|
DCU Relay (With EURO 6C) |
DCU |
MINI |
|
Blower Relay |
|
MINI |
|
Main Relay |
|
MINI |
|
Horn Relay |
|
MICRO |
|
Cooling Fan 1 Relay |
|
MICRO |
